Glow Plug Hole Borescope Size Checklist Uk

Direct answer: many diesel glow-plug inspections need a very slim probe, often in the small-diameter diesel borescope class. A thicker articulating dual-lens probe around 6.5 mm may not enter, so measure the access before buying or inserting.

Why glow-plug access is different

Engine borescope marketing often says "engine inspection" without separating petrol spark-plug access from diesel glow-plug access. That distinction matters. A UK listing for the Sealey VS8200 diesel kit describes a very small probe intended to pass through glow-plug holes for cylinder inspection; the product details list a small camera probe and diesel-specific use. See the listing here: Sealey diesel borescope kit listing.

That does not mean every glow-plug hole is the same. It means diesel access should be treated as a measurement job, not an assumption job.

Size checklist

1. Remove and inspect the glow plug safely: follow the vehicle and workshop procedure before any camera work.

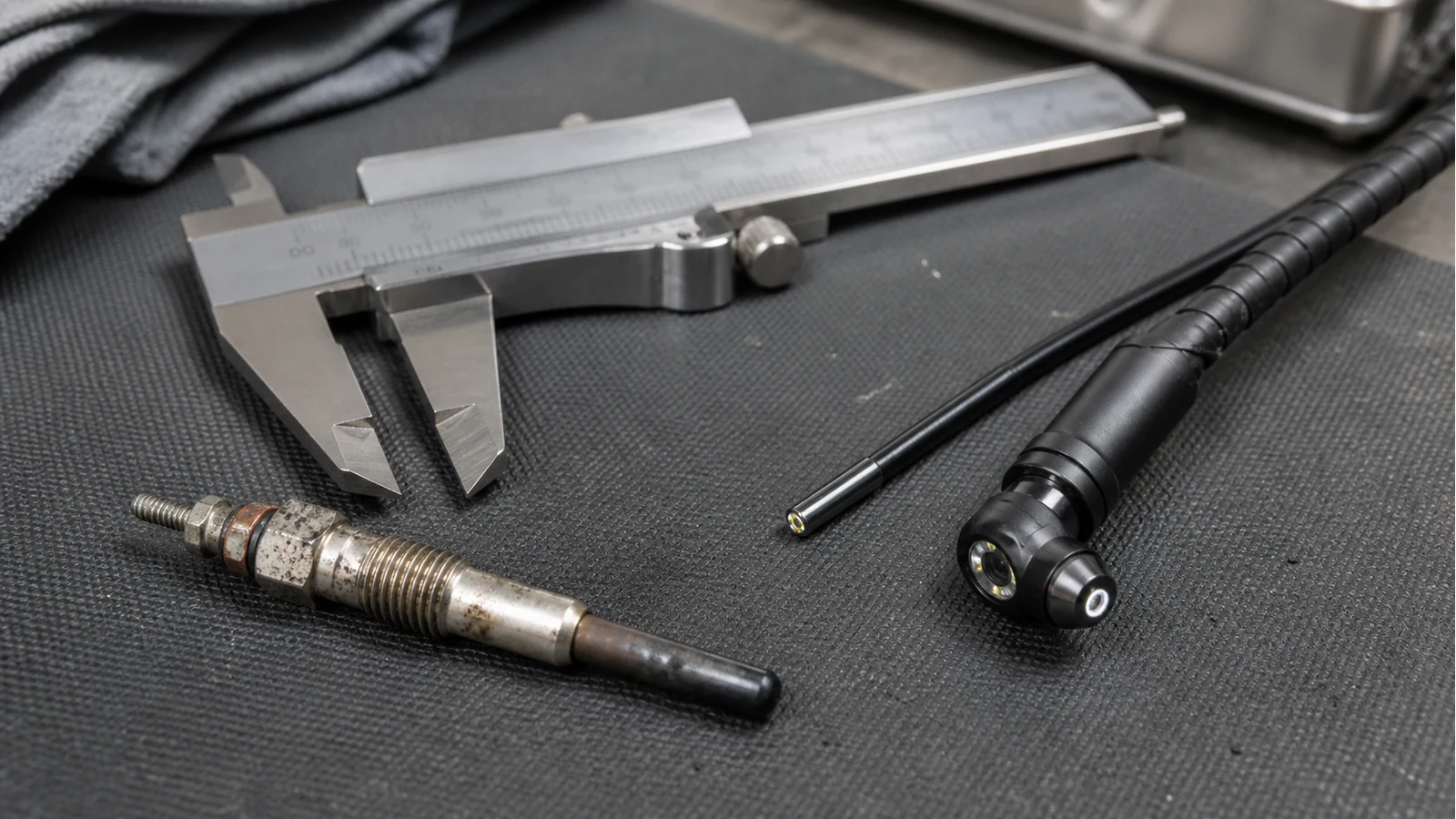

2. Measure the access: use a suitable gauge or caliper on the true restriction, not the outside thread size alone.
3. Check the complete probe head: include sleeves, lens collar, side-view housing and any protective cap.
4. Decide the needed view: crown-only viewing may tolerate a slimmer fixed probe; wall or valve context may need steering but also more diameter.
5. Test gently: if the probe does not enter freely, stop. Do not twist or force it through the port.

When a thicker articulating scope is the wrong choice

If the job is glow-plug-only diesel access and the measured opening is smaller than the probe head, a thicker articulating unit is not a near miss; it is the wrong tool for that access. Choose a dedicated slim diesel probe instead. The loss may be less steering or lower image quality, but the gain is that the probe can actually enter without damage.

Broader borescope guidance also puts probe size before steering and reach. QBH's automotive selection notes advise matching the head to plug or injector access before comparing features: automotive borescope access guidance.

What you can conclude from the image

A glow-plug-port camera can show visible piston crown deposits, cylinder-wall marks in the visible area, debris, liquid or obvious damage. It cannot grade an engine by itself. Compression, leak-down, injector testing and manufacturer procedures remain separate diagnostic evidence.

Stop conditions

• The probe head is larger than the measured restriction.
• The probe catches on the port, sleeve or thread.
• The lens view is blocked and continued pushing would be blind.
• The inspection result would be used to skip required mechanical tests.
• The tool supplier cannot confirm the real probe-head diameter.

For petrol work through larger spark-plug ports, read piston crown carbon inspection camera UK. For general cable control, see semi-rigid vs flexible borescope cable.

Bottom line

Measure first. If the access is too small, a slim diesel probe is the responsible choice. Articulation is useful only after the probe fits freely.
